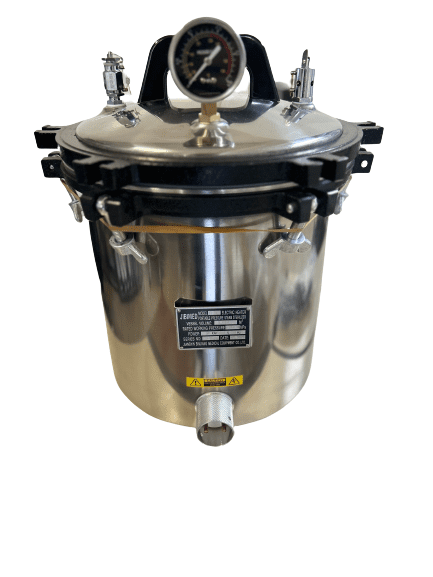

Portable Pressure Steam Sterilizer - 18L Autoclave
R4,996.75 Inc Vat
Next product
Buck Hammer
R69.00 Inc Vat
Syringe Pump
R11,600.00 Inc Vat
Medical Programmable Automatic Syringe Pump with Ce Approved
Note: Portable Electronic injection single channel ambulance syringe pump is compatible with syringe of any standard.
Features(optional):
1) Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatisation and intellectualisation pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Features And Advantages:
- High accuracy ±2%, high consistency.
- Multiple work modes and multiple drug units
- Anti-Bolus can release pressure automatically when occlusion alarms happens
- Several occlusion pressure alarm can meet different pressure requirement for drugs, and improve the safety in the clinic use.
- Key lock avoids mis operation and improve safety.
Specification
| Model | KL-602 | |||
Syringe Size | 10, 20, 30, 50/60 ml | |||
| Applicable Syringe | Compatible with syringe of any standard | |||
VTBI | 0.1-9999 ml ＜1000 ml in 0.1 ml increments ≥1000 ml in 1 ml increments | |||
| Flow Rate | Syringe 10 ml: 0.1-400 ml/h Syringe 20 ml: 0.1-600 ml/h Syringe 30 ml: 0.1-900 ml/h Syringe 50/60 ml: 0.1-1300 ml/h ＜100 ml/h in 0.1 ml/h increments ≥100 ml/h in 1 ml/h increments | |||
Bolus Rate | Syringe 10 ml: 400 ml/h Syringe 20 ml: 600 ml/h Syringe 30 ml: 900 ml/h Syringe 50/60 ml: 1300 ml/h | |||
| Anti-Bolus | Automatic | |||
| Accuracy | ±2% (mechanical accuracy ≤1%) | |||
| Infusion Mode | Memory mode Flow rate: ml/min, ml/h Time-based Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc. | |||
| KVO Rate | 0.1-1 ml/h (in 0.1 ml/h increments) | |||
Alarms | Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm, pressure sensor error, syringe installation error, syringe drop off | |||
| Additional Features | Real-time infused volume, automatic power switching, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory | |||
| Drug Library | Available | |||
Occlusion Sensitivity | High, medium, low | |||
Power Supply, AC | 110/230 V (optional), 50/60 Hz, 20 VA | |||
| Battery | 9.6±1.6 V, rechargeable | |||
| Battery Life | 7 hours at 5 ml/h | |||
Working Temperature | 5-40℃ | |||
Relative Humidity | 20-90% | |||
| Atmospheric Pressure | 860-1060 hpa | |||
Size | 314*167*140 mm | |||
| Weight | 2.5 kg | |||
Safety Classification | Class â…¡, type CF | |||
